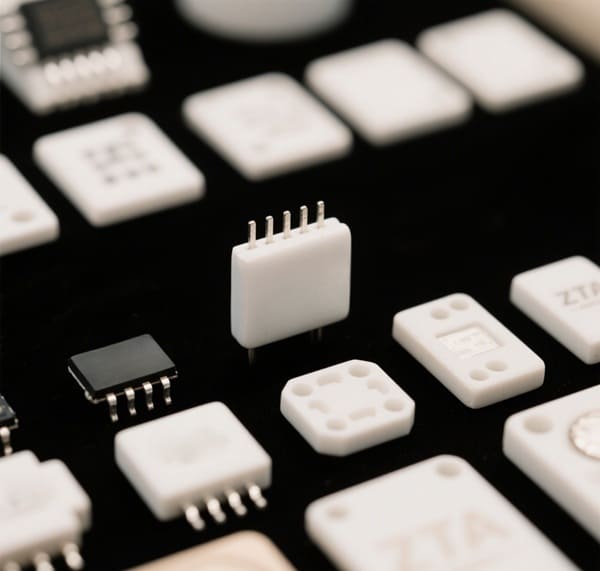

ZTA Ceramics: Enhancing Electrical Components in Harsh Environments

ZTA—Zirconia-Toughened Alumina—is a high-performance ceramic composite that blends the exceptional hardness and insulation properties of alumina (Al₂O₃) with the fracture toughness and crack-resistance of zirconia (ZrO₂). Through a mechanism known as transformation toughening, ZTA can resist crack propagation, making it far more durable than conventional ceramics under mechanical stress. Its ability to withstand high temperatures, electrical stress, thermal cycling, and sudden mechanical shocks makes it indispensable for harsh electrical environments. This article explores how ZTA enhances reliability in critical components such as insulators, substrates, and spark plug cores, and why it’s increasingly preferred over traditional materials in demanding industrial and energy sectors.

At China Ceramic Manufacturer, we specialize in high-quality zirconia toughened alumina, ensuring optimal performance for industrial and scientific applications.

What Is ZTA Ceramic?

Zirconia-Toughened Alumina (ZTA) is an advanced ceramic composite that integrates the hardness and dielectric strength of alumina (Al₂O₃) with the fracture toughness of zirconia (ZrO₂). The addition of zirconia—typically stabilized with yttria—allows the material to resist crack propagation through a stress-induced phase transformation (from tetragonal to monoclinic). This transformation toughening mechanism significantly enhances the mechanical durability of alumina-based components without compromising thermal or electrical performance.

ZTA ceramics are particularly suited for use in harsh electrical and thermal environments, where both insulation and mechanical reliability are crucial. Their superior mechanical-electrical balance makes them ideal for substrates, insulators, and structural elements in high-voltage, high-frequency, and high-temperature systems.

ZTA Ceramic Properties Overview:

Property	ZTA Value Range	Compared to Pure Alumina
Density (g/cm³)	4.0–4.3	Slightly higher
Flexural Strength (MPa)	600–800	300–400
Fracture Toughness (MPa·m¹⁄²)	6–8	3–4
Vickers Hardness (Hv)	1600–1800	~1800
Maximum Service Temperature (°C)	1500–1600	1400–1500
Thermal Conductivity (W/m·K)	8–10	25–30
Dielectric Strength (kV/mm)	>15	10–13
Dielectric Constant (1 MHz)	~9.5–10.5	9–10

ZTA ceramics deliver a unique combination of strength, toughness, and electrical insulation. Compared to pure alumina, ZTA maintains excellent dielectric strength while offering significantly better fracture resistance and structural stability in dynamic or extreme environments. This makes ZTA a go-to material in advanced electronics, power systems, and aerospace electrical insulation.

Explore our high-quality zirconia toughened alumina.

How Does ZTA Perform in Harsh Electrical Environments?

ZTA (Zirconia Toughened Alumina) demonstrates exceptional resilience in demanding electrical applications. Thanks to its unique composite structure, it retains its mechanical strength and electrical insulation even under prolonged exposure to extreme heat, humidity fluctuations, and high-voltage stress. This makes ZTA highly reliable in high-power and mission-critical environments such as aerospace avionics, power modules, and high-frequency insulators.

Environmental Stability of ZTA:

Test Condition	Result
1200 °C for 72 h	No microcracks observed
25–150 °C humidity cycling	Stable dielectric performance
High-voltage impulse (30 kV)	No dielectric breakdown

ZTA maintains structural integrity and dielectric stability even when exposed to conditions that often lead to failure in traditional ceramics. This makes it a top candidate for insulating parts used in variable-temperature, high-voltage, or moisture-rich environments where consistent performance is non-negotiable.

What Electrical Components Use ZTA Ceramics?

Zirconia Toughened Alumina (ZTA) is increasingly adopted in advanced electrical systems due to its excellent dielectric properties, thermal resistance, and mechanical robustness. These characteristics make ZTA suitable for components that must operate reliably under electrical, thermal, and mechanical stress. As the demand for compact and high-performance electrical systems grows, ZTA continues to replace conventional alumina or polymer-based insulators in many critical applications.

Key ZTA Applications in Electronics:

• High-voltage insulators: Withstands >15 kV and rapid thermal cycling without breakdown
• Power transistor and IGBT substrates: Provide excellent electrical insulation with thermal dissipation
• Circuit breaker bases: Resists arcing, thermal gradients, and mechanical impact
• Spark plug insulators: Operate in combustion chambers with high-pressure and thermal shocks
• Microwave windows: Transparent to RF signals while offering electrical insulation and heat resistance
  ZTA ceramics offer a durable, high-performance solution for electrical systems exposed to high voltages, fluctuating temperatures, and physical stress. Their adoption is expanding across aerospace, power electronics, and automotive sectors where long-term reliability is essential.

How Does ZTA Compare with Other Advanced Ceramics?

In high-performance electrical and thermal applications, several advanced ceramics are commonly used, including aluminum nitride (AlN), silicon nitride (Si₃N₄), and beryllium oxide (BeO). Each has strengths, but few match the balanced combination of mechanical toughness, insulation, and safety provided by Zirconia Toughened Alumina (ZTA). The table below highlights key differences across critical performance parameters.

ZTA vs Other Advanced Ceramics:

Property	ZTA	AlN	Si₃N₄	BeO
Electrical Resistivity (Ω·cm)	~10¹⁴	~10¹³	~10¹²	~10¹³
Thermal Conductivity (W/m·K)	8–10	170	20–30	200–250
Fracture Toughness (MPa·m¹⁄²)	High	Low	High	Low
Toxicity	Safe	Safe	Safe	Toxic (Be)

While AlN and BeO offer superior thermal conductivity, they lack the mechanical robustness that ZTA provides. Additionally, BeO’s toxicity limits its usability in many industries. ZTA delivers a rare combination of safety, toughness, and dielectric performance, making it a reliable and safer choice for harsh environments.

Request a custom quote for high-quality zirconia toughened alumina.

What Are the Limitations of ZTA Ceramics?

Zirconia Toughened Alumina (ZTA) offers excellent toughness and electrical insulation, but it is not without its drawbacks. Understanding these limitations is crucial for selecting the right material for your application. The main challenges relate to cost, manufacturing complexity, and specific thermal properties.

Key Limitations of ZTA Ceramics:

• Higher raw material and processing costs compared to pure alumina and some other ceramics
• Requires precise sintering control to achieve optimal microstructure and performance
• Limited thermal conductivity, making it less suitable for applications demanding rapid heat dissipation

Although ZTA involves higher material costs and manufacturing complexity, its superior mechanical and dielectric properties justify its use in critical, high-reliability environments. Careful consideration of thermal and cost requirements will ensure the best material choice.

How Is ZTA Ceramic Processed and Shaped?

Manufacturing ZTA involves several precise steps to ensure performance.

ZTA Processing Steps:

• Powder mixing (Al₂O₃ + ZrO₂) – ensures uniform distribution
• Compaction (pressing or CIP) – creates dense, crack-free billets
• Sintering (~1600 °C) – achieves full densification
• Diamond grinding & lapping – produces high precision and smooth surfaces

 Each step requires advanced equipment and expertise, underlining ZTA’s suitability for professional production environments.

What Is the Future of ZTA Ceramics in Electronics?

Zirconia Toughened Alumina (ZTA) ceramics are increasingly recognized as a key material for the next generation of electronic devices. Their unique combination of toughness, electrical insulation, and thermal stability aligns perfectly with evolving industry demands for higher performance, miniaturization, and environmental compliance.

Emerging applications highlight how ZTA is pushing the boundaries in electronics: from advanced telecommunications to sustainable energy systems and aerospace electronics.

Emerging Trends in ZTA Applications:

• 5G Ceramic Antennas: Providing excellent insulation while maintaining signal transparency, ZTA enables reliable high-frequency communication components.
• ZTA-Insulated Silicon Carbide (SiC) Power Modules: Essential for electric vehicles and renewable energy grids, these modules benefit from ZTA’s heat resistance and electrical isolation.
• Aerospace-Grade ZTA Composites: Lightweight yet durable, these composites are tailored for high-reliability systems where weight and performance are critical.
• ZTA’s combination of durability, electrical performance, and adaptability is driving its adoption across cutting-edge electronic technologies.

As electronics demand more reliable and efficient materials, ZTA ceramics are positioned for significant growth. Their expanding role in 5G, clean energy, and aerospace sectors underlines their importance in future high-performance electrical systems.

FAQ

Question	Answer
Is ZTA safe for high-voltage applications?	Yes, with dielectric strength >15 kV/mm.
Can ZTA replace alumina in all scenarios?	Not always—but essential in tough uses.
How does ZTA handle thermal cycling?	Excellent resistance to cracking.
Who uses ZTA ceramics?	Aerospace, EVs, power electronics sectors
Is ZTA cost-effective long-term?	Higher upfront, but lower lifecycle cost.

Conclusion

Zirconia Toughened Alumina (ZTA) ceramics uniquely combine exceptional toughness, excellent electrical insulation, and superior thermal stability, making them ideal for electrical components that must withstand extreme heat, high voltage, and mechanical stresses. These qualities make ZTA the material of choice in demanding industries such as aerospace, clean energy, telecommunications, and advanced manufacturing, where reliability and long-term performance are critical. As these sectors continue to evolve with rising technological and environmental challenges, the demand for ZTA ceramics grows steadily. At China Ceramic Manufacturer, we specialize in providing customized, high-quality ZTA solutions engineered to perform flawlessly in the harshest conditions, helping to drive innovation and power the future of robust, efficient electrical systems worldwide.
